Drainage, Grading & Hillside Water Management in Columbia, TN

Location

Columbia, Tennessee

County

Maury County

Project Type

Residential Drainage & Grading

Key Work

French drains, riprap drainage, grading, seed & blanket

This newer Columbia, Tennessee home sits on a beautiful wooded and sloped property where managing water is an important part of protecting the finished site.

The home and property were well constructed overall. After the homeowners moved in and the property went through rainfall, several drainage and final-grading details became apparent that needed additional attention.

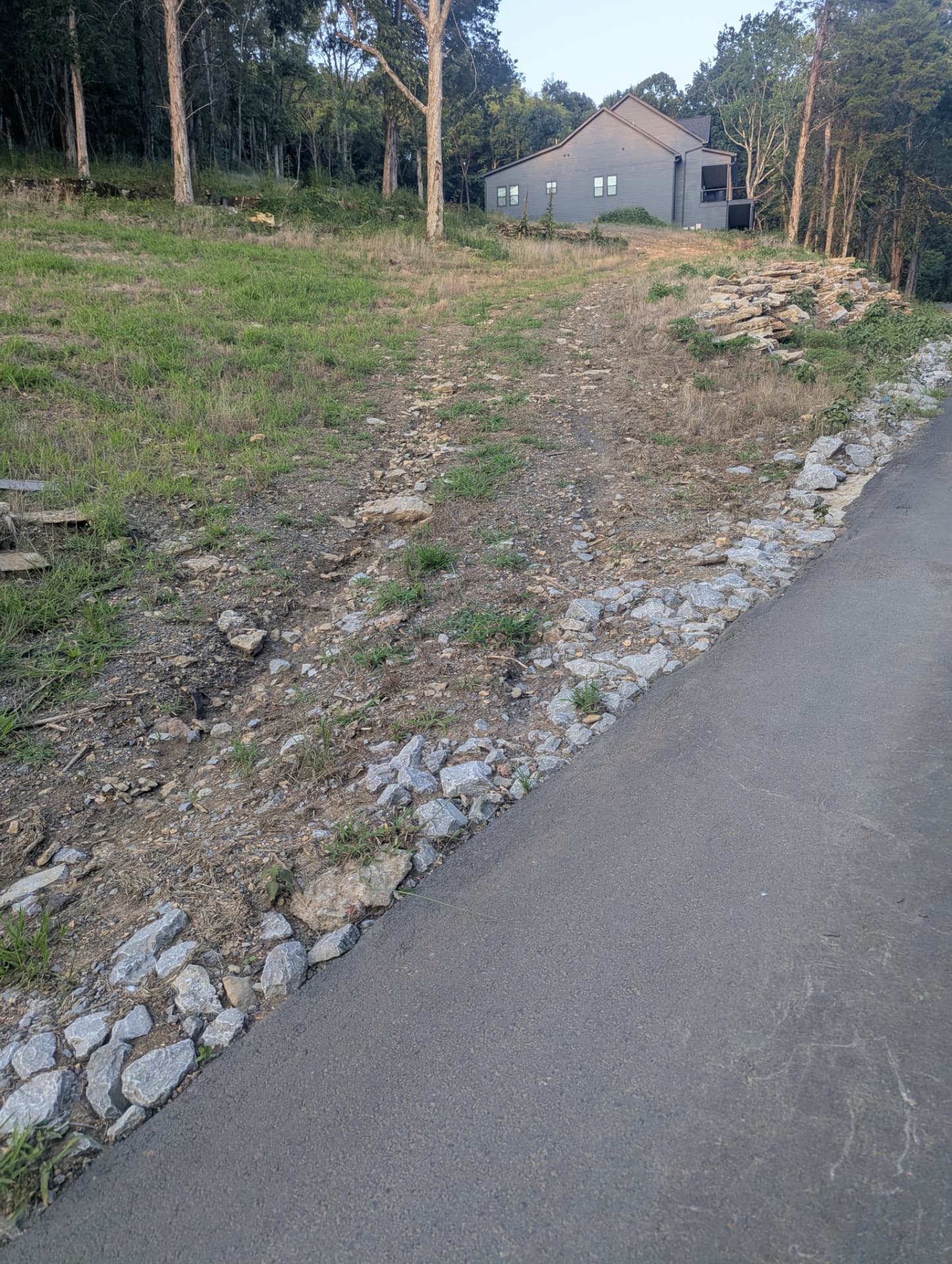

Water was moving through and off the surrounding hillsides, portions of the driveway drainage were not carrying runoff as intended, and hillside seepage was keeping another area consistently wet.

CANDO approached the property as a complete drainage system rather than treating each wet area independently. The work included rebuilding drainage along portions of the driveway, installing French drainage, improving hillside water management, correcting final grades, importing topsoil, restoring disturbed areas with seed and erosion-control blanket, and constructing approximately 120 feet of additional gravel access into the backyard.

Keeping Water and Sediment Off the Driveway

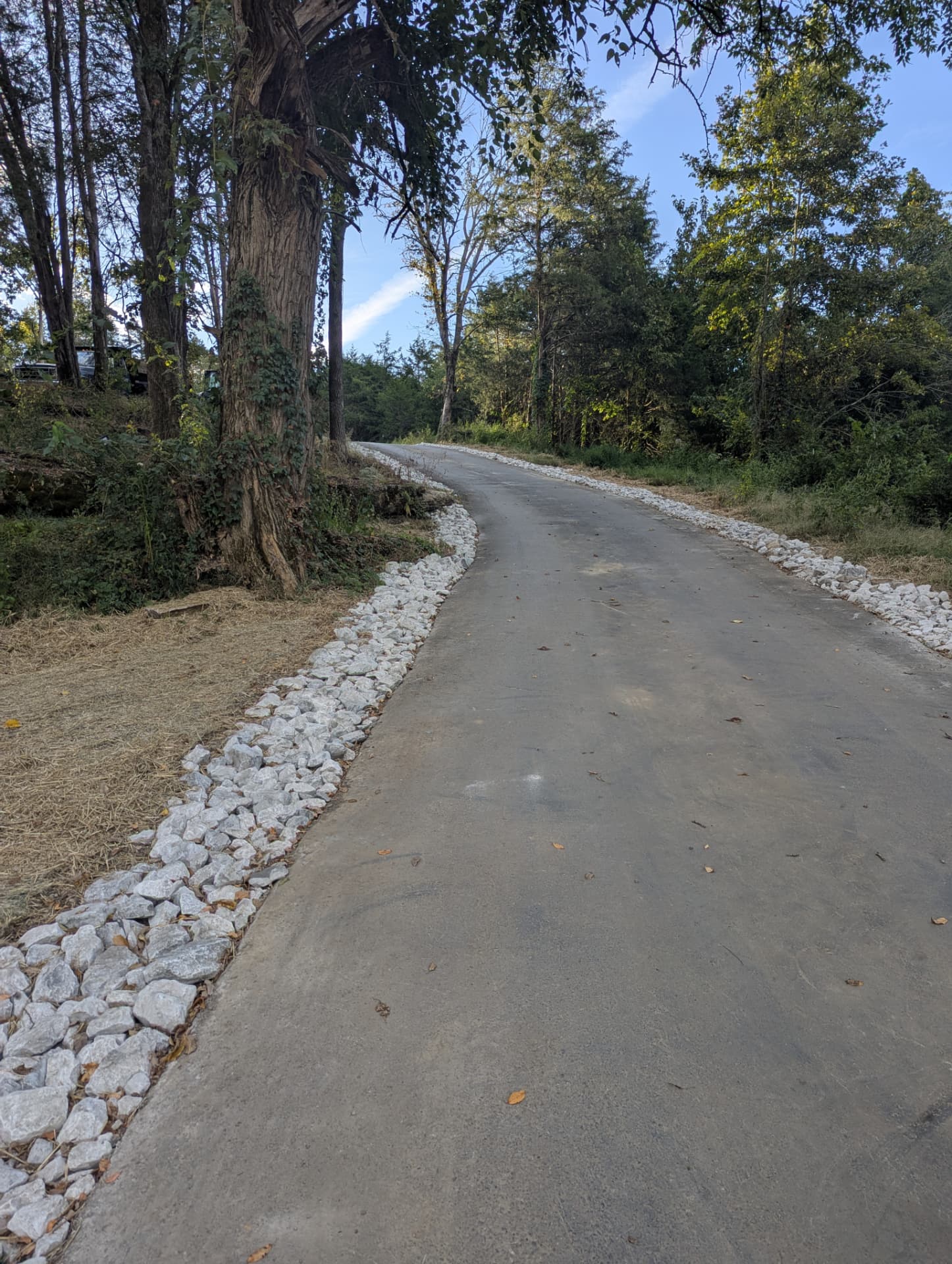

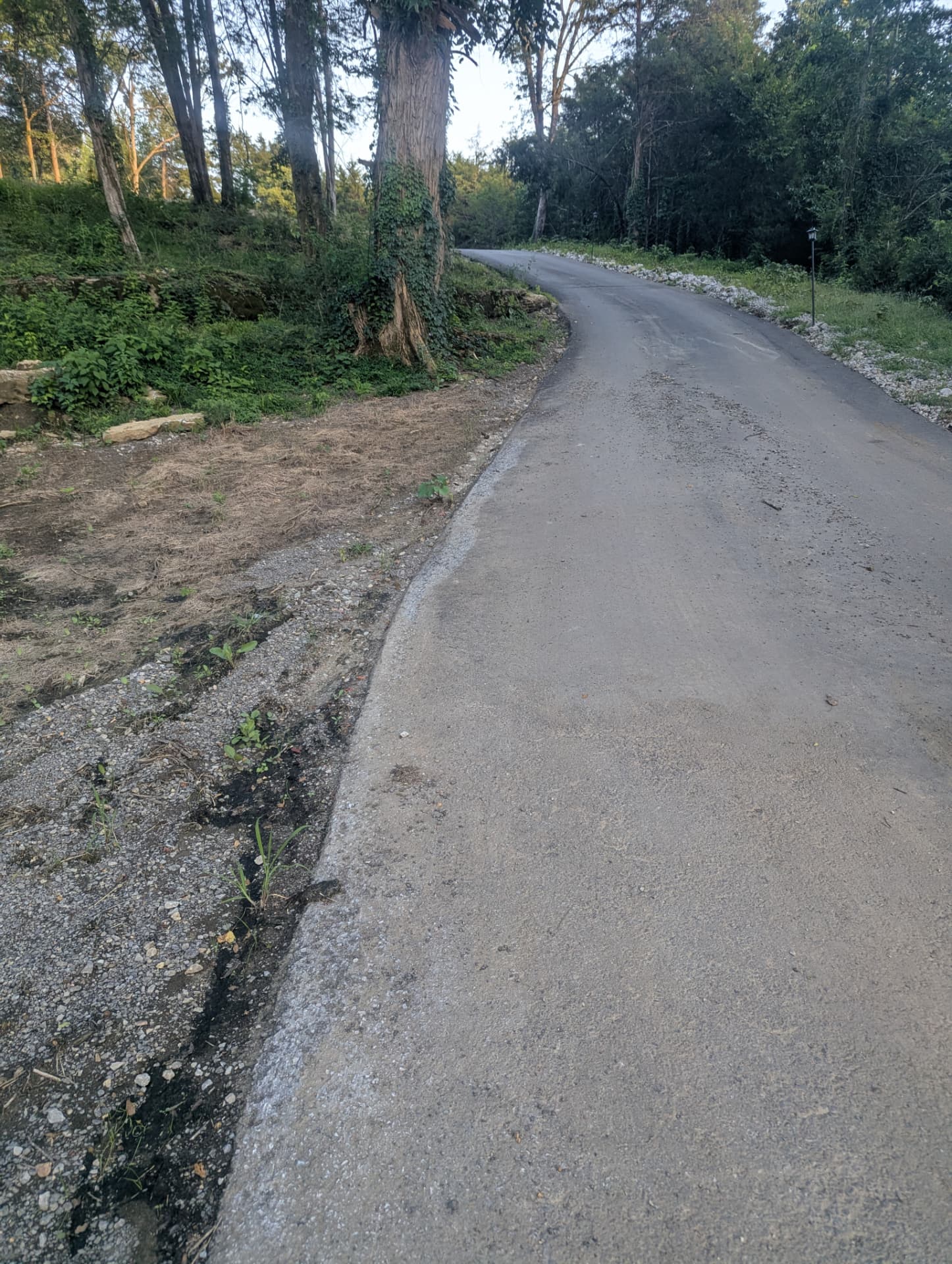

Along portions of the existing driveway, riprap had already been installed to help manage runoff. However, dirt and smaller crusher-run material were mixed throughout portions of the riprap.

During rainfall, water moving through these areas could carry some of that loose soil and smaller stone onto the paved driveway instead of allowing the drainage edge to function cleanly.

CANDO cleaned up and reworked the affected drainage areas so the riprap could better define the intended water path and reduce the amount of loose material washing onto the pavement.

Managing Water Coming Through the Hillside

Another section of the property remained consistently wet because water was leaching through the hillside. This was not simply a matter of surface runoff — water moving through the soil needed a reliable path to drain away from the area.

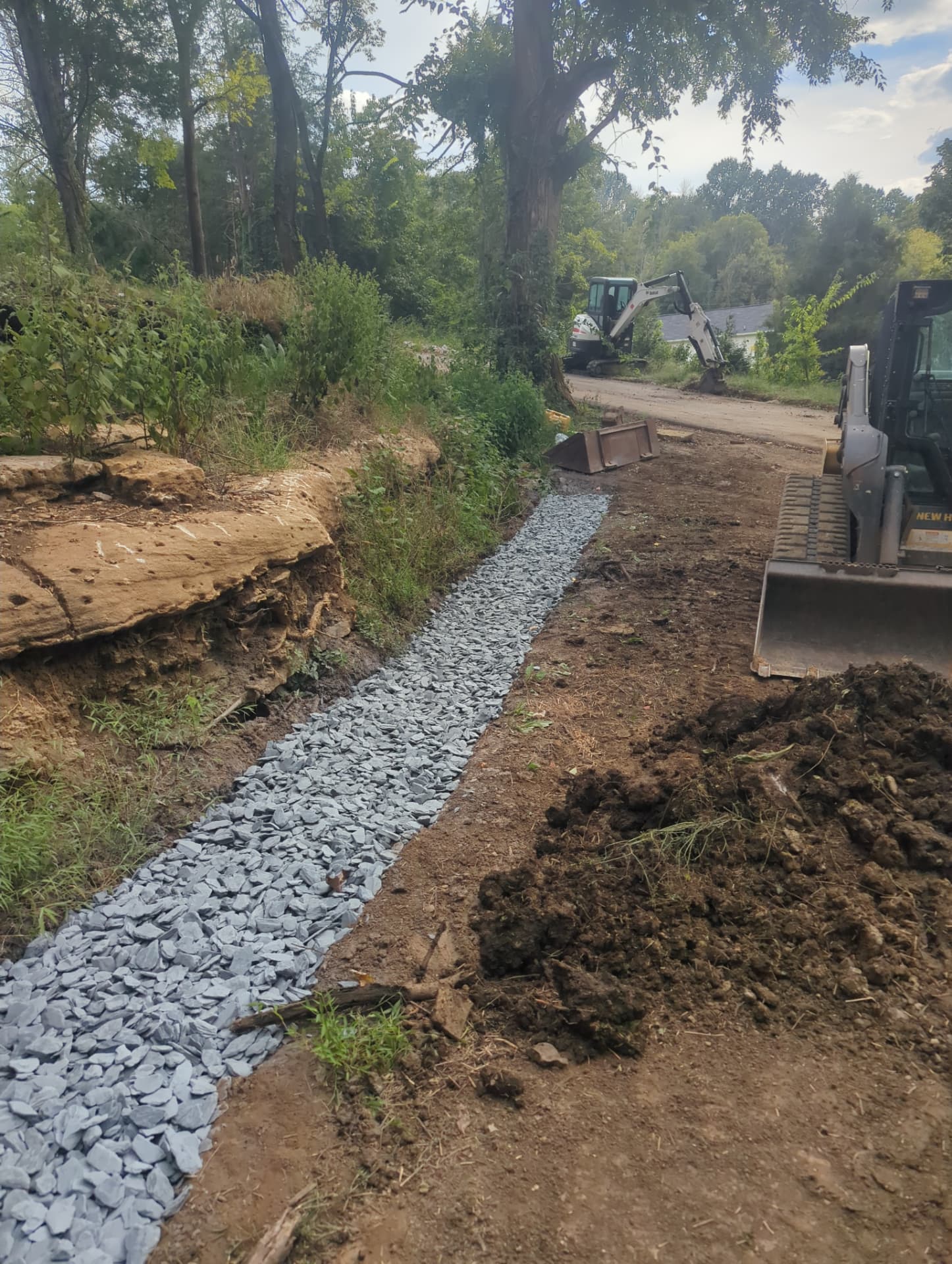

CANDO installed a French drain along approximately the 30–40 foot landscaped section to intercept and manage that water.

The functional drainage stone was installed below, but instead of leaving the finished surface looking like a typical utility drainage trench, the upper approximately two inches were finished with decorative stone over landscape fabric. The drainage feature stays functional while giving a cleaner appearance appropriate for the finished property.

Rebuilding the Drainage Path Beside the Rock Face

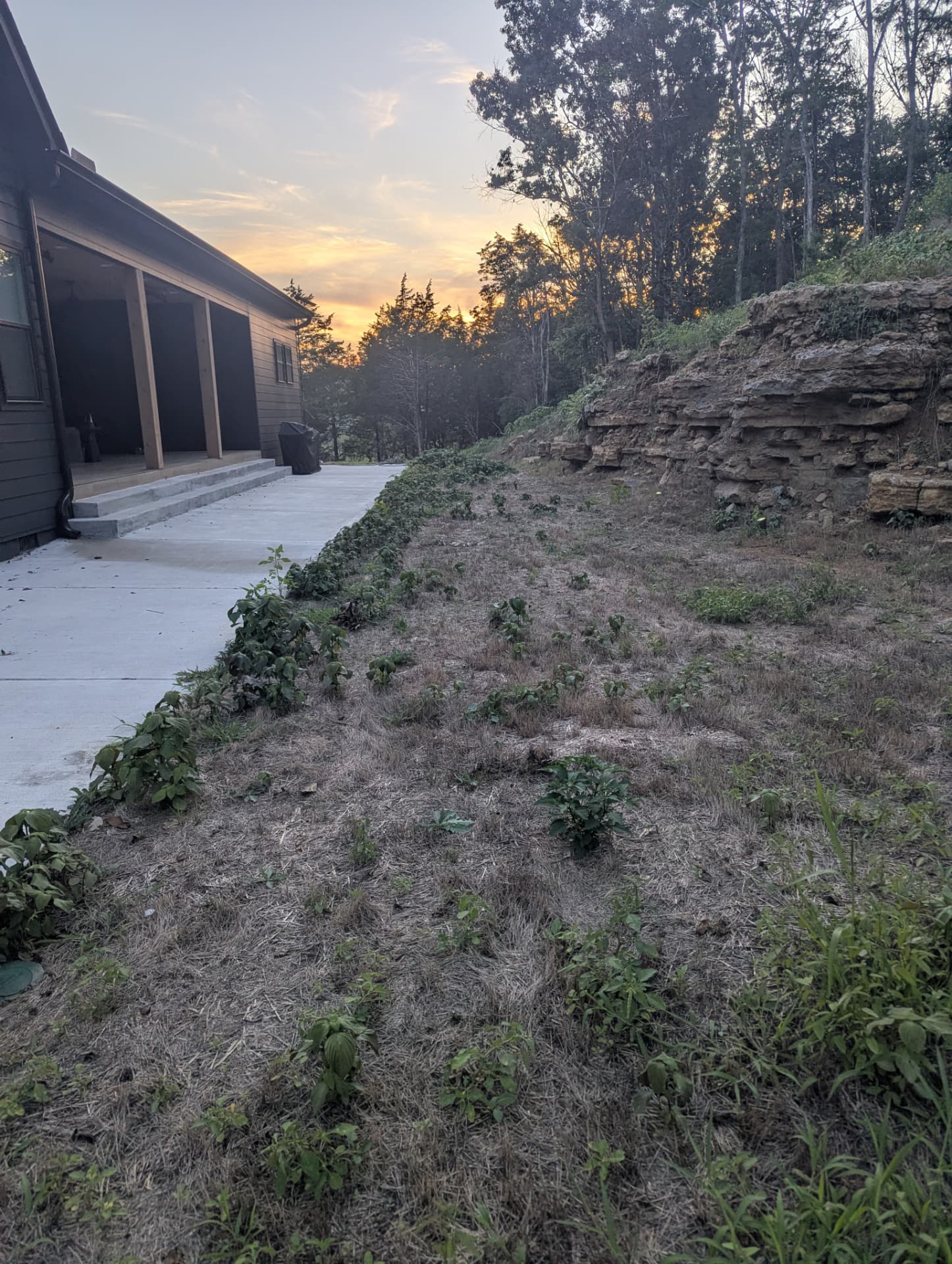

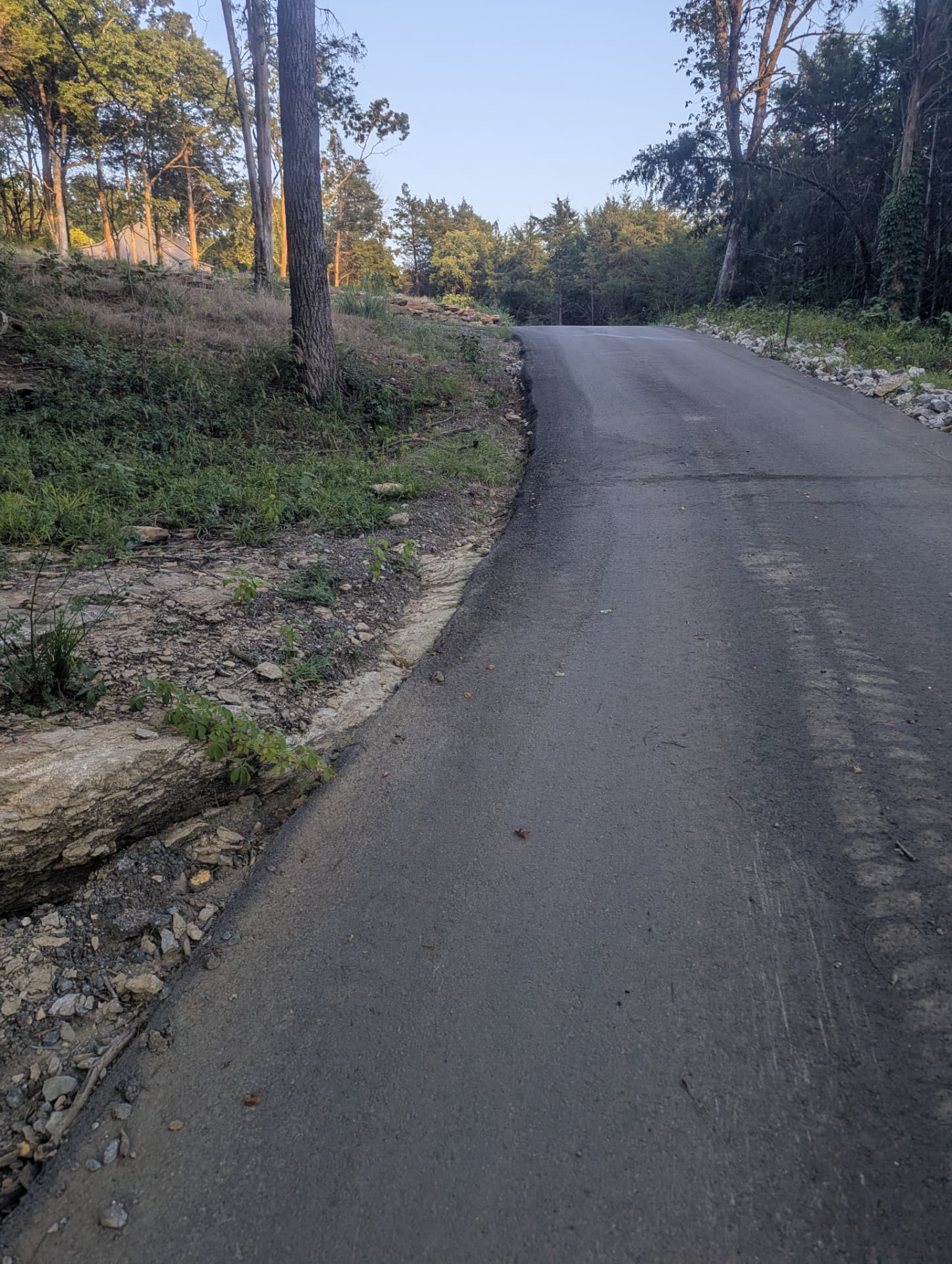

One of the more important drainage corrections was near the home and garage. Water coming from the upper hillside and exposed rock face entered an existing riprap drainage area beside the driveway.

The available outlet provided only about 0.5% fall, so establishing a continuous drainage path was important. The existing drainage area contained a low point/back-pitched section. During heavier rainfall, water could collect there and eventually overflow across the driveway, leaving visible red-soil streaks on the pavement.

CANDO excavated the drainage path and installed a 6-inch French drain through this section. The system was then backfilled and rebuilt with clean riprap to help capture both hillside runoff and water leaching from the rock-face area.

The drainage path was carried to the available outlet at approximately 0.5% fall, and the discharge area was protected with riprap.

The purpose was not simply to hide the water underground. It was to give water from the hillside and rock face a continuous route to the available exit instead of allowing it to collect at the low point and cross the driveway.

Finishing the Grade and Giving Grass a Better Start

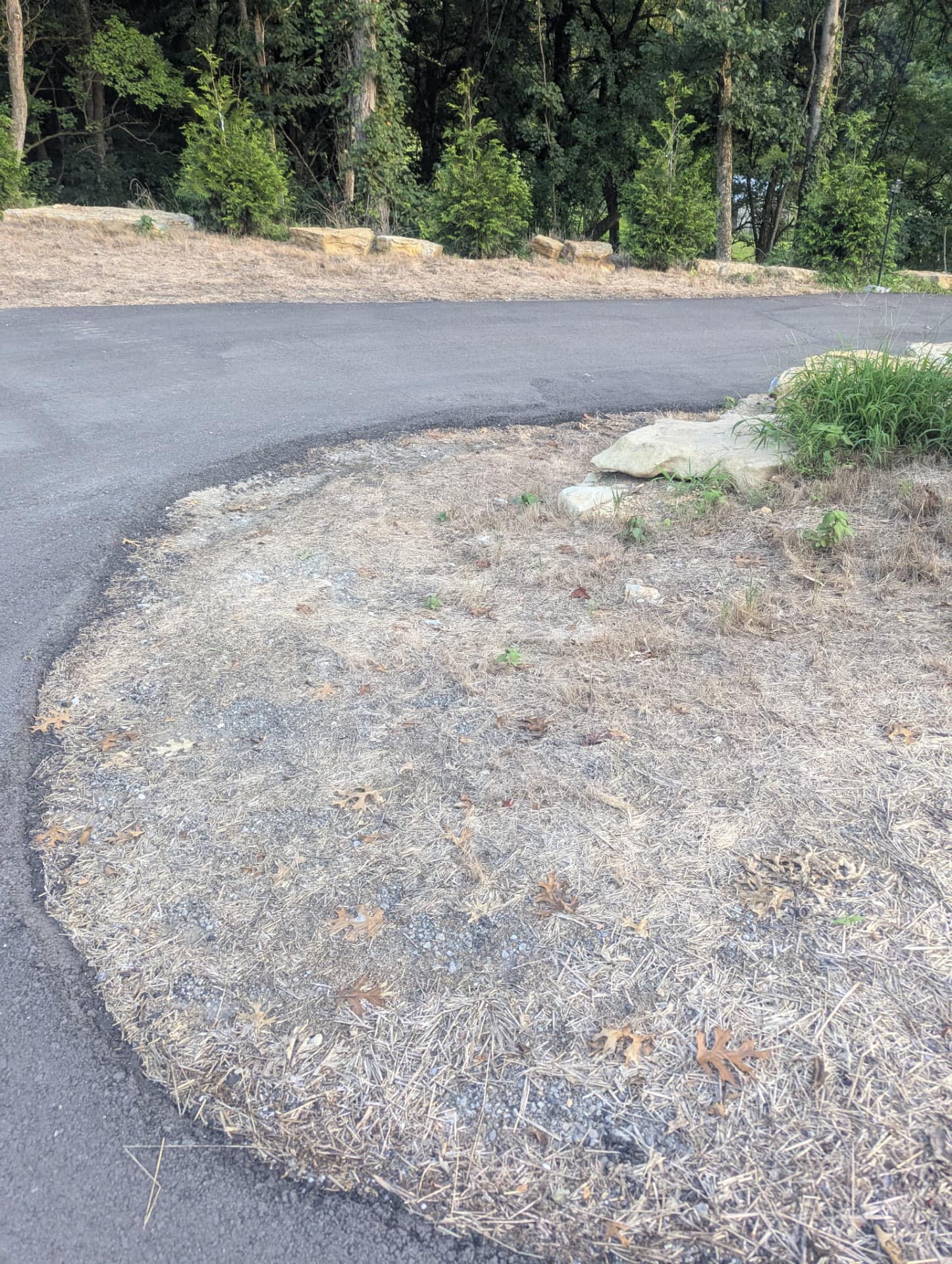

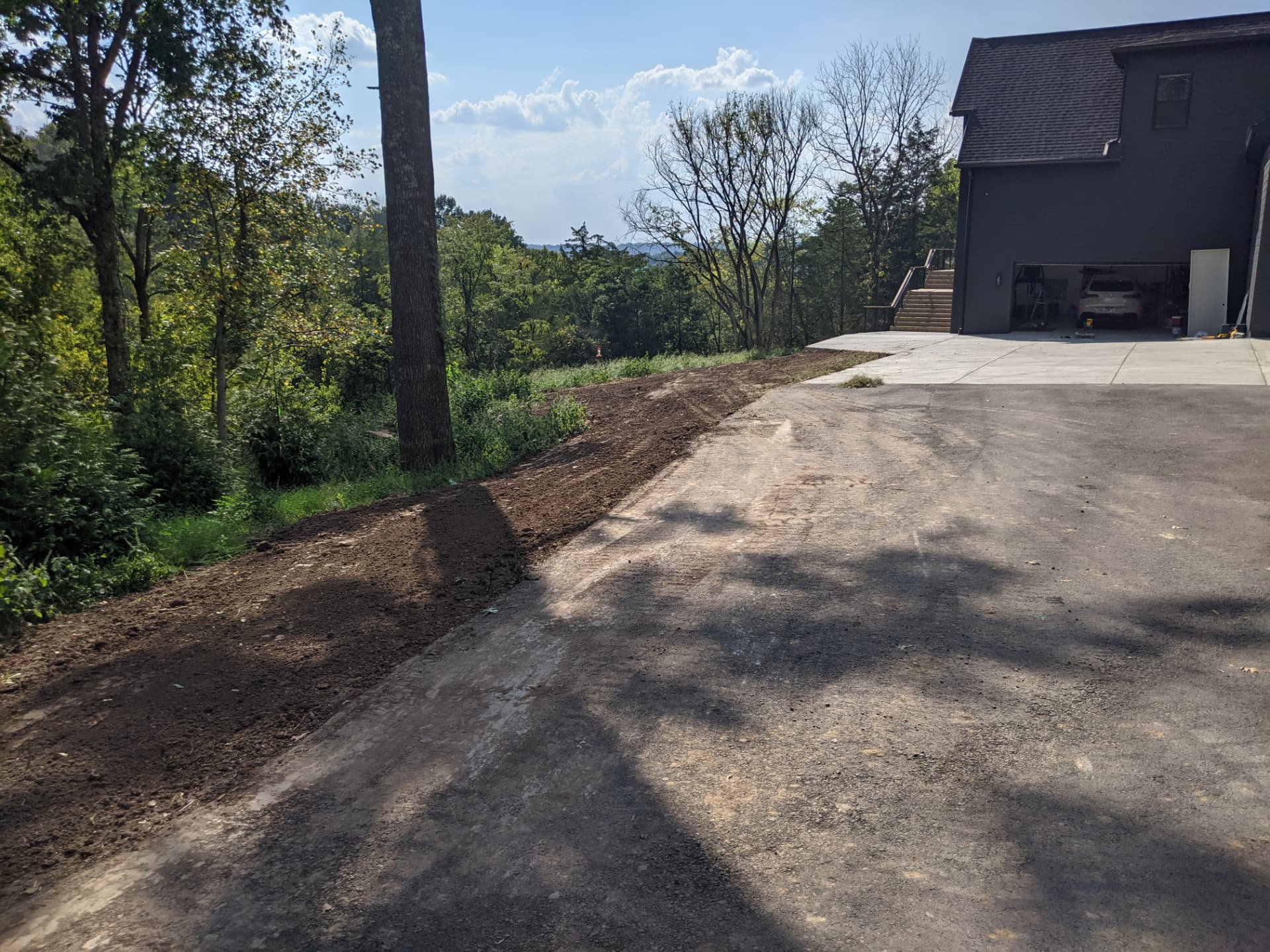

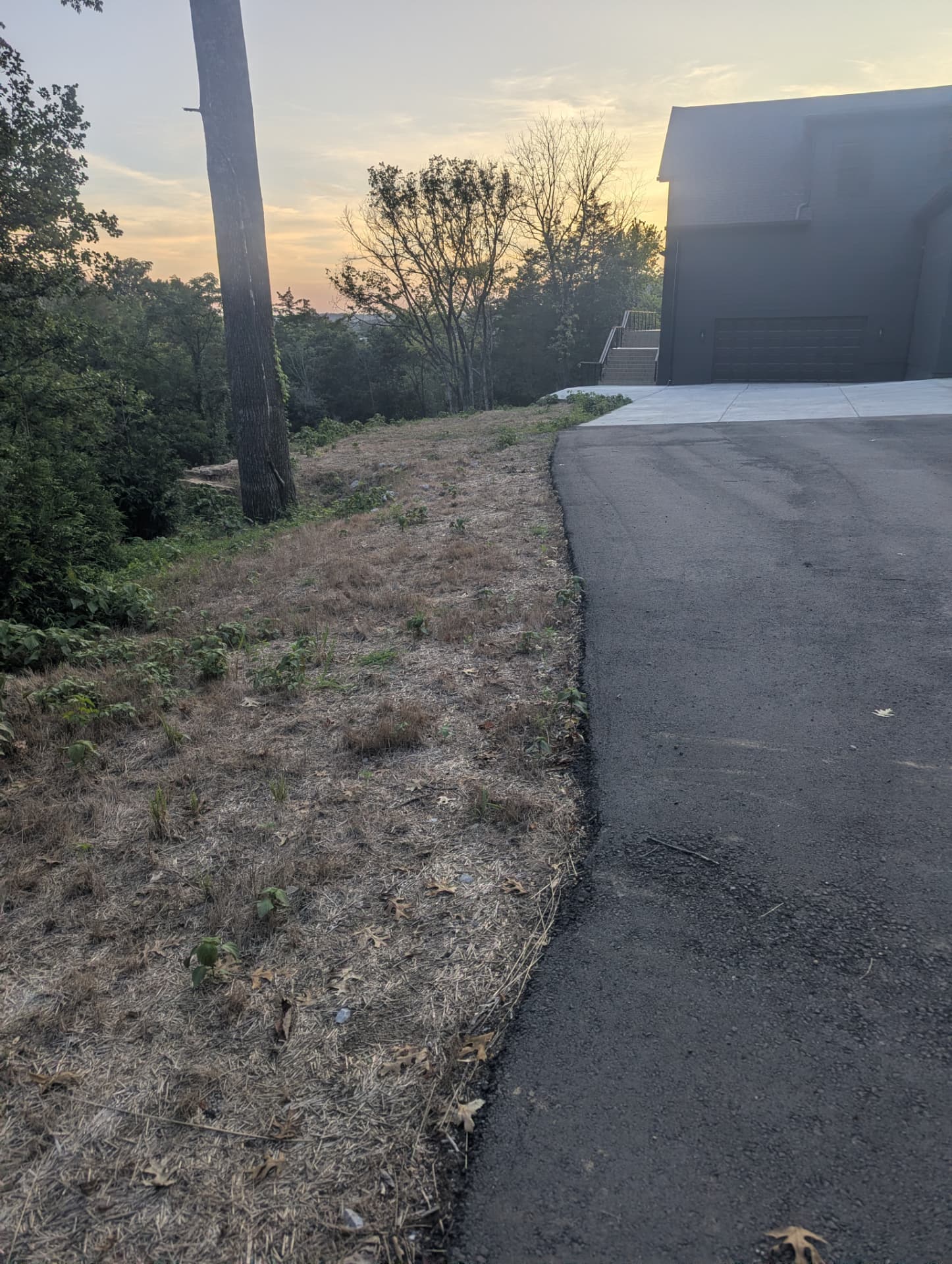

Several areas around the property had not established grass well after construction. CANDO brought in five loads of topsoil and finish-graded the areas that needed additional soil and surface correction.

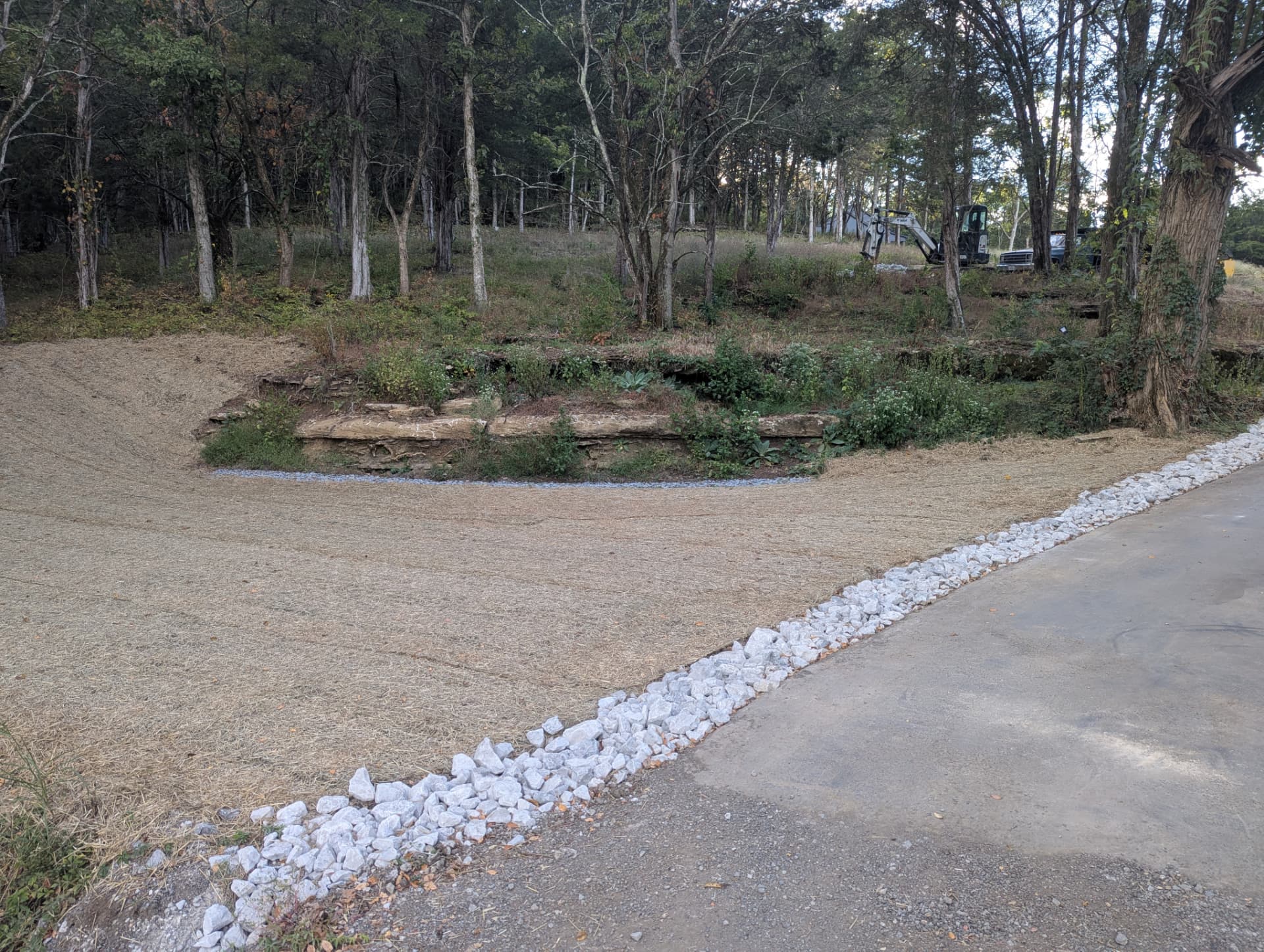

After the drainage and grading work was complete, the disturbed areas were seeded and covered with erosion-control blanket. The blanket helps protect the newly worked soil and seed while vegetation becomes established — particularly important on sloped ground, where rainfall can otherwise move exposed soil.

Adding Approximately 120 Feet of Backyard Access

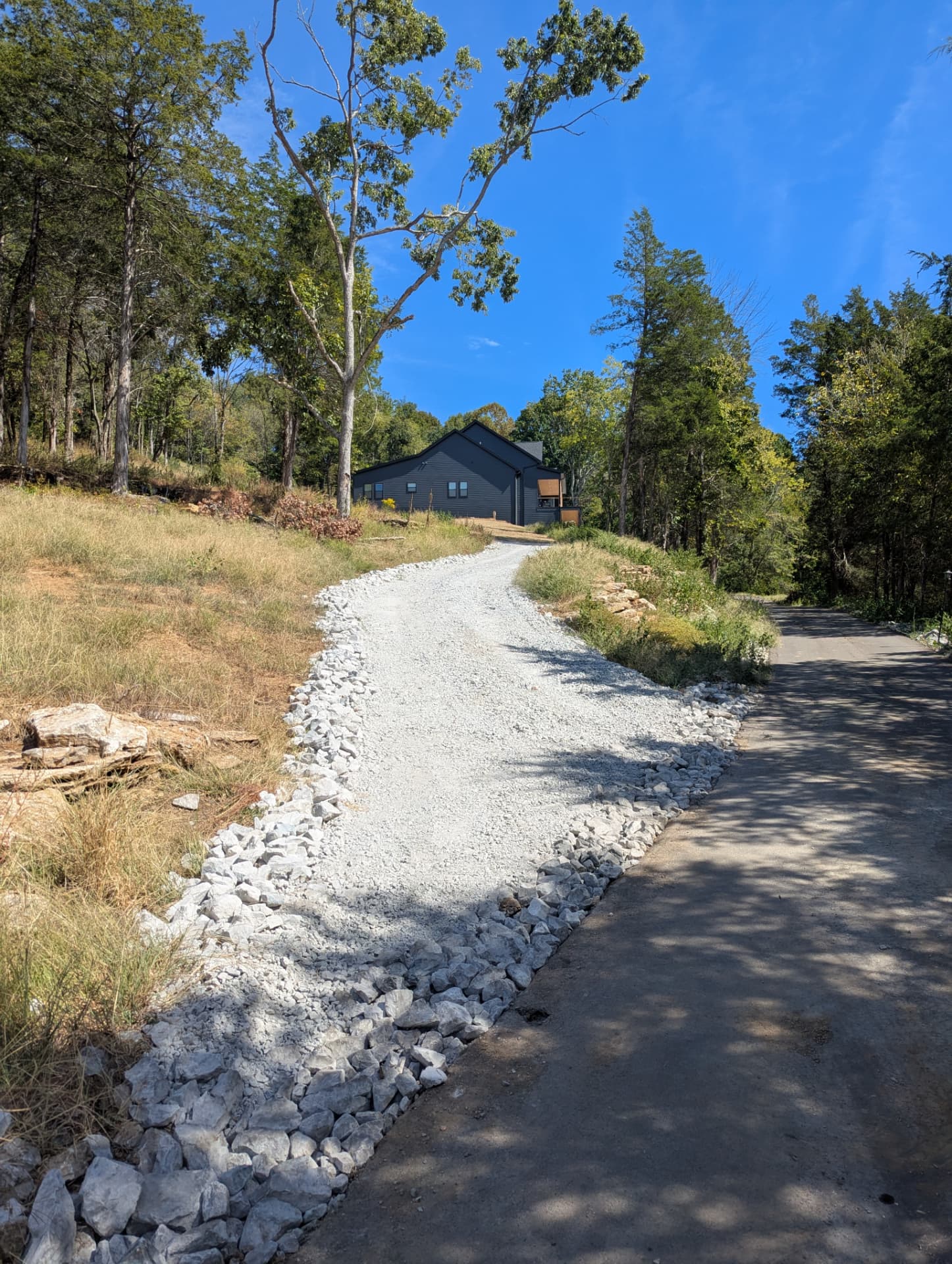

In addition to the drainage work, CANDO constructed approximately 120 feet of gravel driveway/access leading into the backyard. The new access provides a practical route toward the propane-tank area and gives the homeowners better access for future property needs.

Treating the Property as a Water System

The important part of this project was recognizing that the individual problem areas were connected by the property's terrain.

Water was coming from hillsides, moving through soil and exposed rock, entering drainage areas beside the driveway, and finding low points where it could leave the intended path.

Rather than treating only the visible wet spots, CANDO worked through how the water was entering each area, where it needed to travel, and what was preventing it from reaching a usable outlet.

A More Controlled Path for Water

The finished project gives water coming from the surrounding slopes and rock face more deliberate routes through the property.

The driveway drainage areas are cleaner and better defined, hillside seepage has a dedicated French-drain system, the upper drainage path now has a continuous route toward its outlet, and previously bare or disturbed areas have been graded, seeded, and protected with erosion-control blanket.

The additional gravel access also gives the homeowners a practical route into the backyard for the propane area and future needs.

The visual result matters, but the more important improvement is underneath and alongside it: water now has defined places to go.

Start with the grade. Understand how the property moves water. Then we form a plan. The simplest long-term drainage solution is usually the right one.
